Premium Quality

Ro
HS

Environmentally Friendly

Heavy Duty Casters

CAPACITY TO 1250 LBS

FEATURES

•Improved zinc plated finish for attractive appearance, better corrosion resistance and longer caster life
•Bigger kingpin: New bigger, stronger 3/4" kingpin on standard top plate
•NSF Listed: For food service and sanitation industry
•Top Plate & Yoke Base: Cold formed from 1/4" steel plate. Yoke base is notched for factory or field-installable 4-position swivel lock
•Swivel Section: Smooth formed, hardened double ball bearing raceways minimize ball indentation and wear
•Fork Legs: 1/4" steel, formed to increase strength and welded to yoke base
•Axle: 1/2" diameter hollow axle complete with lock nut with straight roller and Delrin bearings. Axle is solid with ball, plain bore, and Oilex bearings
•Wheel seals: Nylon seal retaining/thrust washers
•Lubrication: Zerk fitting in swivel section and in recessed head of hollow axle on straight roller and Delrin bearing wheels
•Alternate or custom caster configurations available

TYPICAL APPLICATIONS

• Shop/Distribution Carts
• Dollies
• Waste disposal trucks
• Warehouse trucks
• Floor Trucks

SWIVEL CROSS SECTION

MOUNTING OPTIONS

Standard Plate

Special Order Plates

Optional D Plate

Optional K Plate

RIG OPTIONS

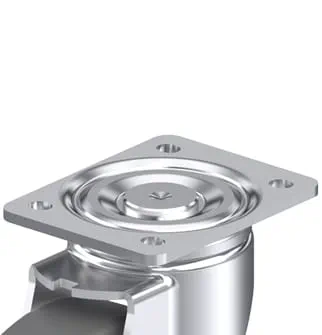

•Upper/lower raceway rubber seals help protect casters
•Notched seal kit
•Optional overall heights
•Stainless steel versions available (see 05 Series)

ACCESSORIES

To order, add brake code below to end of model. Example: 16XS06201ST

Total Lock brake specify T (4" to 8" models) specify optional 7½" (H5-60) overall height model if ordering 6"

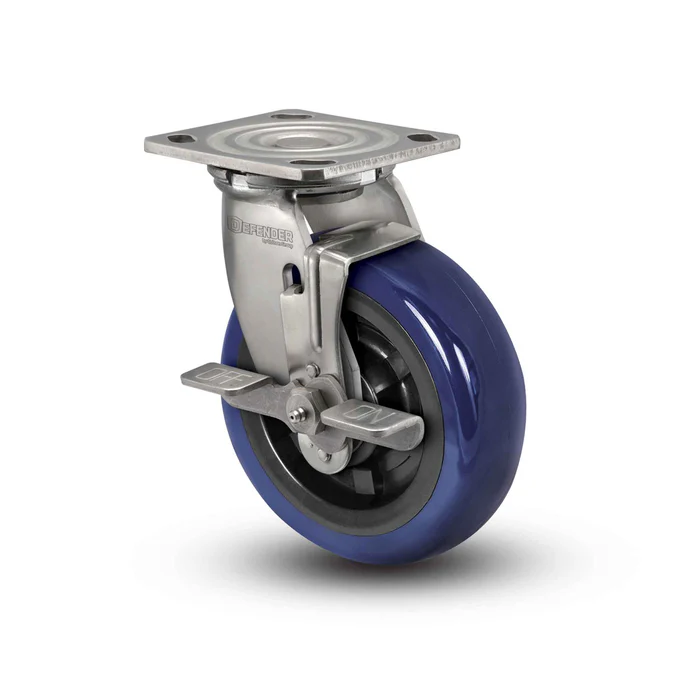

Cam brake specify CB1

Face brake specify FBE

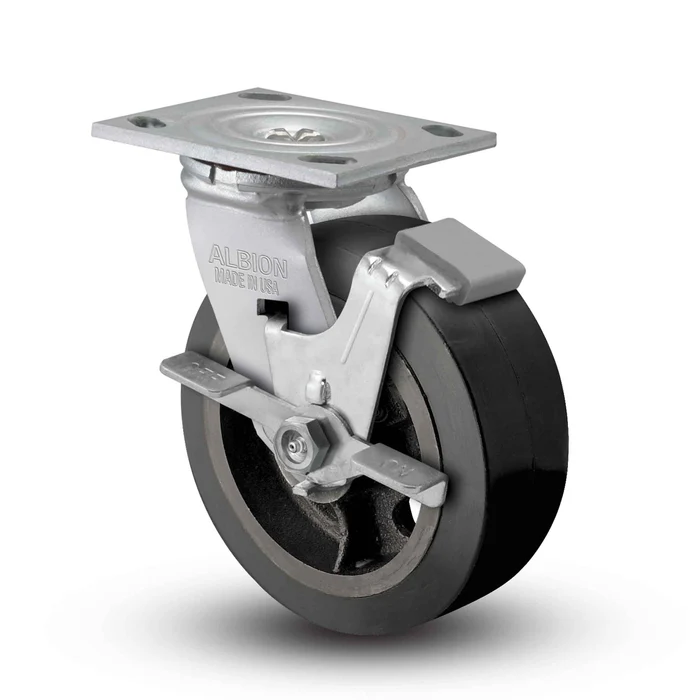

Face brake specify FBA

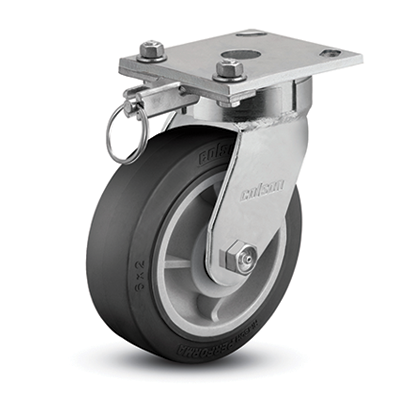

Swivel Lock (welded) specify L (not available with Total Lock brakes)

Hand operated field installable swivel lock order SL160000 separately

Foot operated field installable swivel lock order SL160002 separately

Raceway grease seals, specify SS02

BEARING OPTIONS

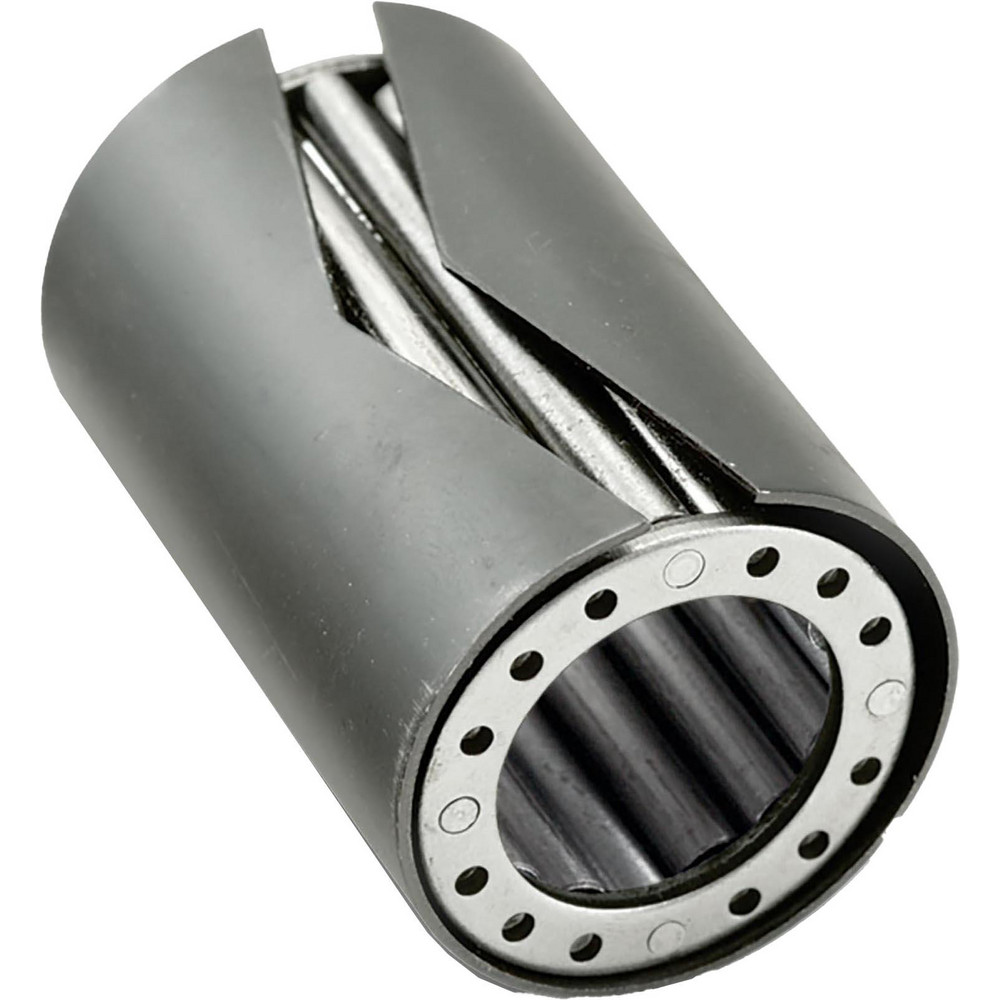

Straight Roller

(01)

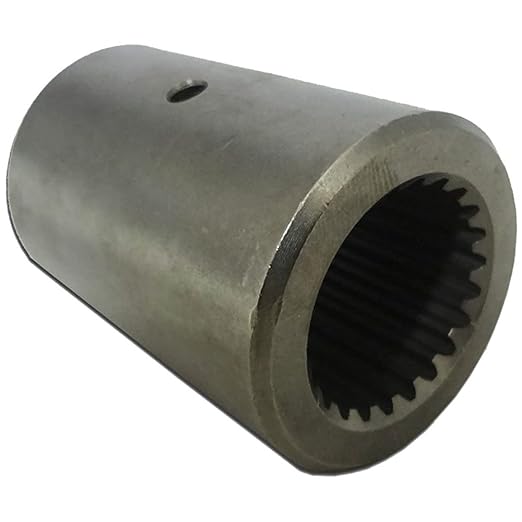

Drawn Cup Roller

(02)

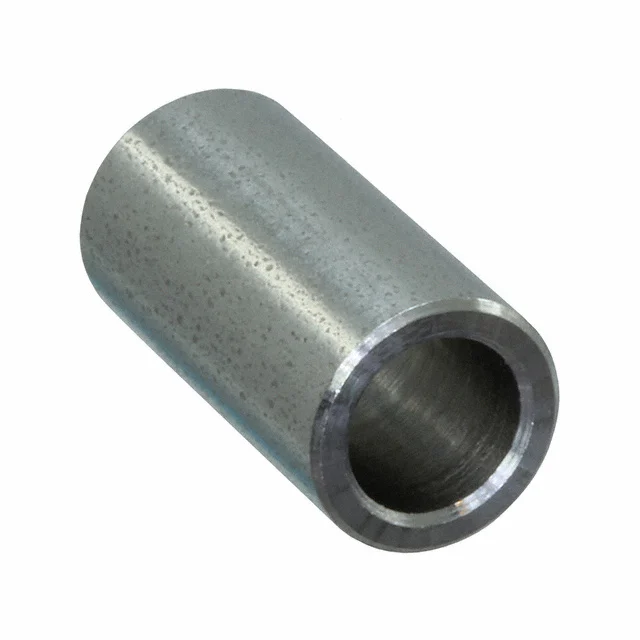

Oilex

(23)

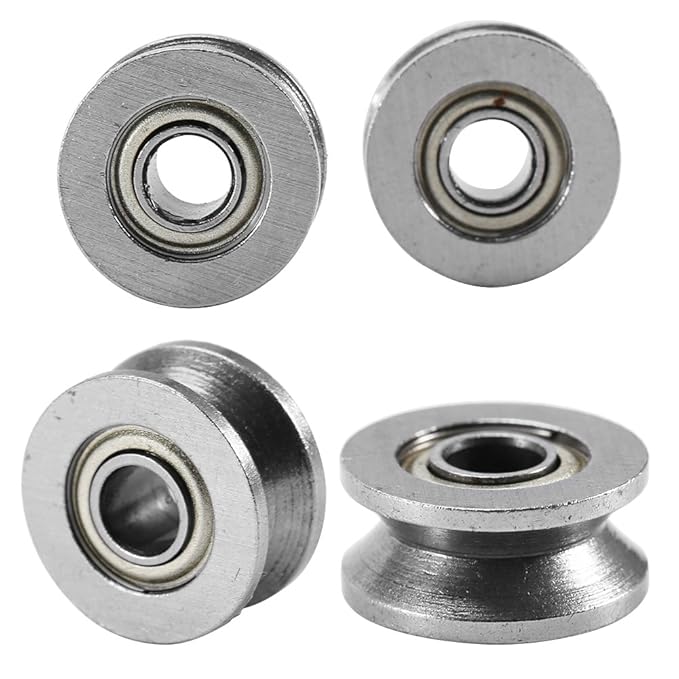

Industrial Ball

(27)

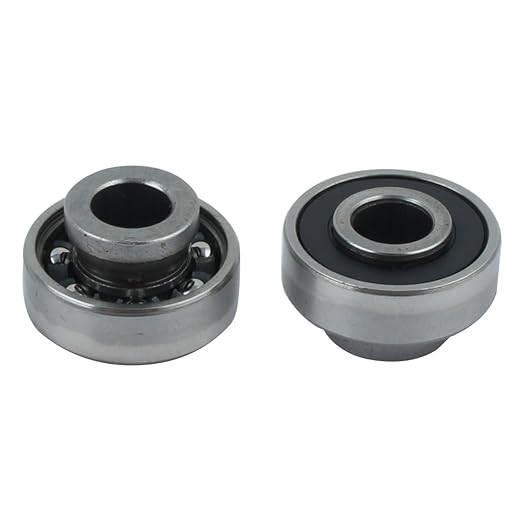

Precision Ball

(28)

Pedestal Precision

(29)

1-Piece Delrin

(52)

2-Piece Delrin

(51)

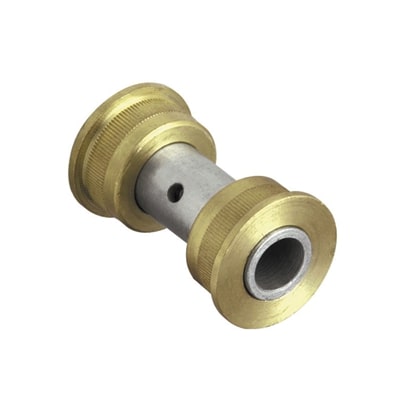

Bronze

(22)

Note: Wheel capacities can change with each bearing type. Consult factory.

USA-made rigs with 3/4" kingpin

last 40% longer than leading imports with 5/8" kingpin.

POLYURETHANE MODELS

Premium Efficiency Wheel Orange Round Polyurethane on Aluminum

ANNew

85 Shore A

Learn more below

Standard Bearing: Precision Ball (28) with new patent pending top hats.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	800	5⅝	1¹¹⁄₁₆	5
5	2	1000	6½	1⅝	6
6	2	1250	7¼	1¾	7
8	2	1250	9½	1¾	9

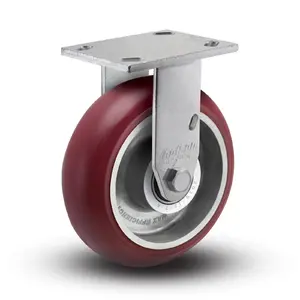

Premium Efficiency Wheel Maroon Round Polyurethane on Aluminum

AXNew

85 Shore A

Learn more below

Standard Bearing: Precision Ball (28) with new patent pending top hats.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	800	5⅝	1¹¹⁄₁₆	5
5	2	1000	6½	1⅝	6
6	2	1250	7¼	1¾	7
8	2	1250	9½	1¾	9

Green Round Tread Polyurethane on Aluminum

95 Shore A

Standard Bearing: Precision Ball (28).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
5	2	1000	6½	1⅝	6
6	2	1250	7¼	1¾	7
8	2	1250	9½	1¾	9

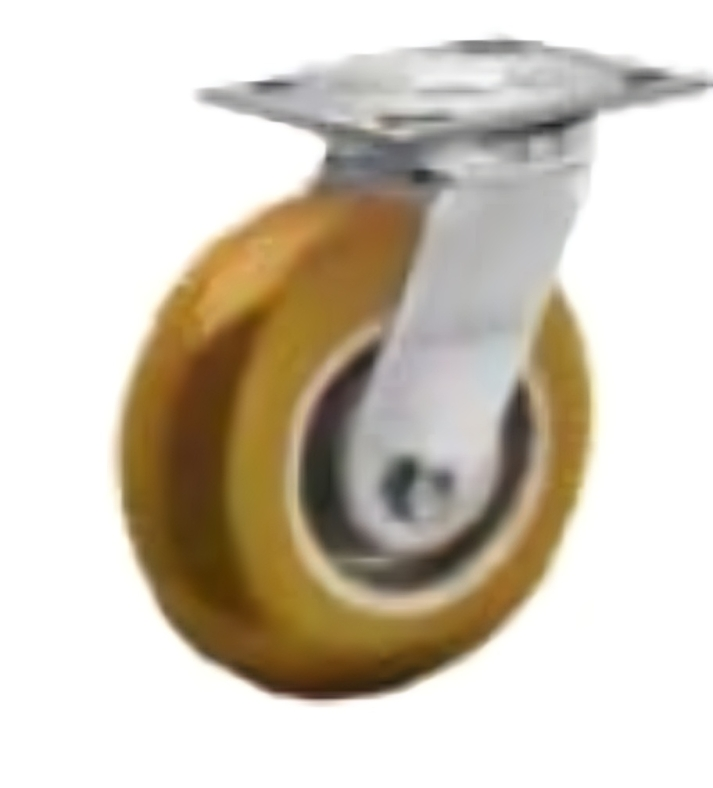

Butterscotch Round Tread Polyurethane on Aluminum

PM 80A

80 Shore A

Standard Bearing: Precision Ball (28).

To Specify Rigid or Swivel, insert "R" or "S" before "80A".

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
5	2	1000	6½	1⅝	6
6	2	1250	7¼	1¾	7
8	2	1250	9½	1¾	9

Green Polyurethane Crowned Tread on Aluminum

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	700	5⅝	1¹¹⁄₁₆	5
5	2	1050	6½	1⅝	5¼
6	2	1230	7¼	1¾	5¾
8	2	1250	9½	1¾	7

Economical
Green Wheel

Economical Green Polyurethane on Iron

Standard Bearing: Drawn Cup Roller (02).

Optional Bearings: Delrin (52) Change 02 above to 52.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	700	5⅝	1¹¹⁄₁₆	7
5	2	1000	6½	1⅝	8
6	2	1200	7¼	1¾	9¾
8	2	1250	9½	1¾	10

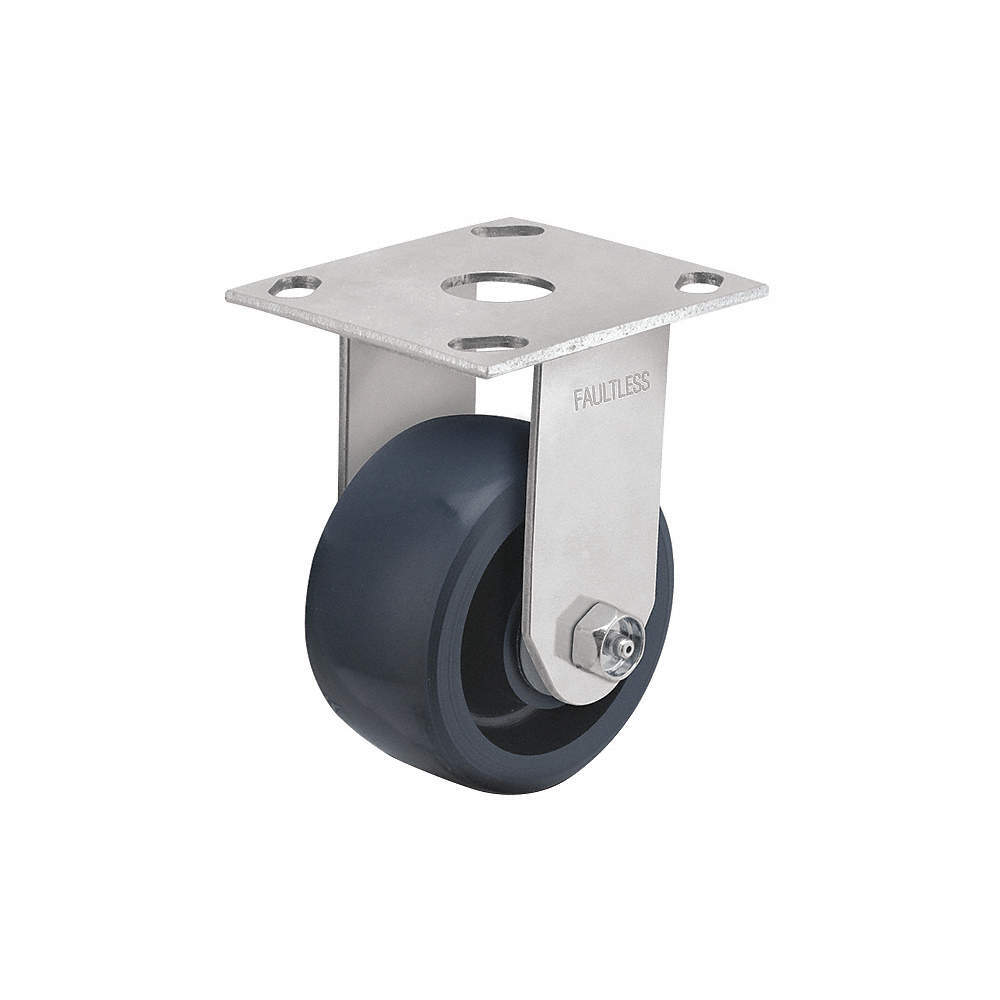

Solid Polyurethane

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	700	5⅝	1¹¹⁄₁₆	5
5	2	1000	6½	1⅝	5½
6	2	1200	7¼	1¾	6¼
8	2	1250	9½	1¾	8

V-Grooved
Polyurethane

V-Grooved Solid Polyurethane

Standard Bearing: Drawn Cup Roller (02).

Optional Bearings: Delrin (52) Change 02 above to 52.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	300	5⅝	1¹¹⁄₁₆	4½
5	2	300	6½	1⅝	5
6	2	300	7¼	1¾	5¼
8	2	300	9½	1¾	5¾

Polyurethane on Polypropylene

Standard Bearing: Roller (01)

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	600	5⅝	1¹¹⁄₁₆	4¼
5	2	750	6½	1⅝	4¾
6	2	900	7¼	1¾	5½
8	2	1000	9½	1¾	7½

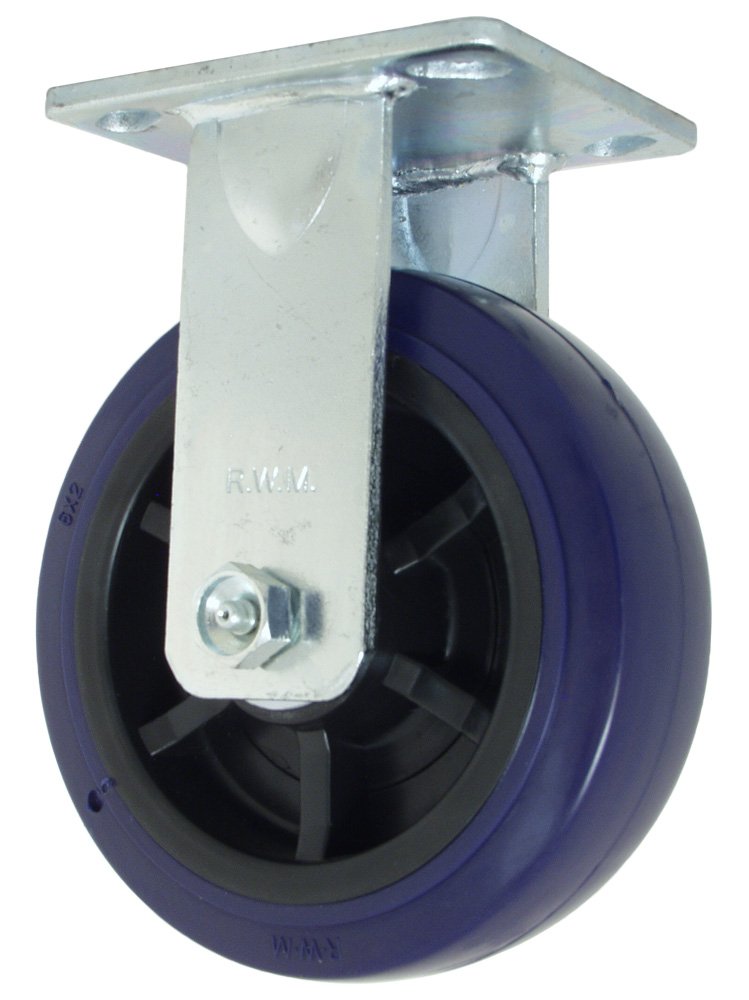

Heavy Duty Polyurethane on Polypropylene

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	600	5⅝	1¹¹⁄₁₆	5¾
5	2	900	6½	1⅝	5½
6	2	1100	7¼	1¾	8
8	2	1200	9½	1¾	10¼

NYLON MODELS

Premium Glass Filled Nylon

Standard Bearing: Roller (01).

Optional bearings: Drawn Cup Roller (02), Bronze (22), Pedestal Precision (29) and Delrin (51); change 01 above to optional bearing code.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
3¼	2	700	4¼	1¾	5
4	2	800	5⅝	1¹¹⁄₁₆	5
5	2	1000	6½	1⅝	5½
6	2	1200	7¼	1¾	6¼
8	2	1250	9½	1¾	8

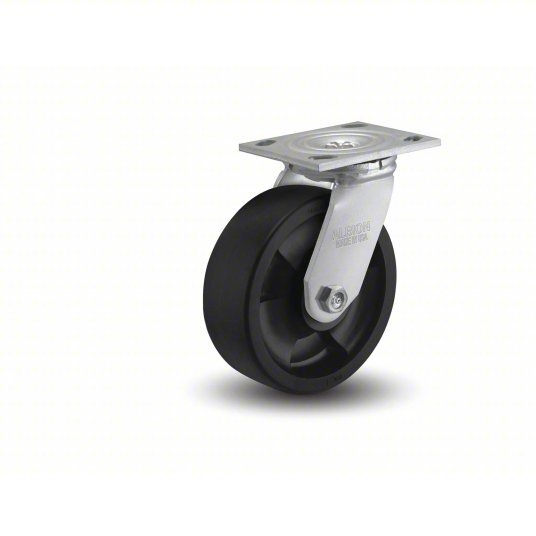

Heavy Duty Glass Filled Nylon

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)
4	2	800	5⅝	1¹¹⁄₁₆
5	2	1200	6½	1⅝
6	2	1250	7¼	1¾
8	2	1250	9½	1¾

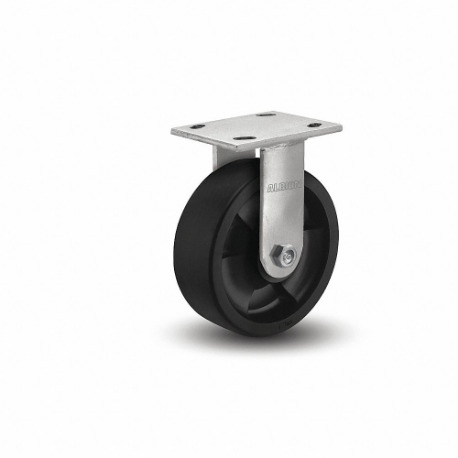

High Temp Glass Filled Nylon

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)
4	2	800	5⅝	1¹¹⁄₁₆
5	2	1000	6½	1⅝
6	2	1200	7¼	1¾
8	2	1250	9½	1¾

METAL MODELS

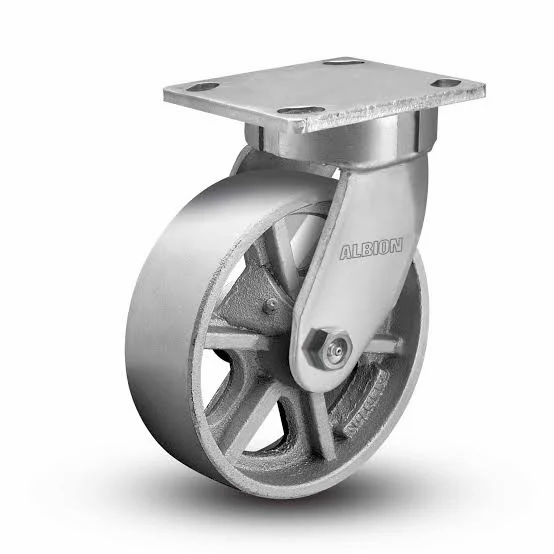

Cast Iron

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
3¼	2	700	4¼	1¾	6¾
4	2	1000	5⅝	1¹¹⁄₁₆	7
5	2	1250	6½	1⅝	8
6	2	1250	7¼	1¾	9¾
8	2	1250	9½	1¾	12½

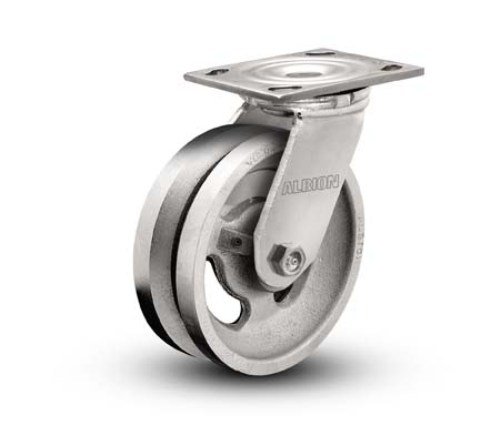

V-Grooved Cast Iron

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	800	5⅝	1¹¹⁄₁₆	7
5	2	800	6½	1⅝	8¾
6	2	1000	7¼	1¾	9¾

RUBBER MODELS

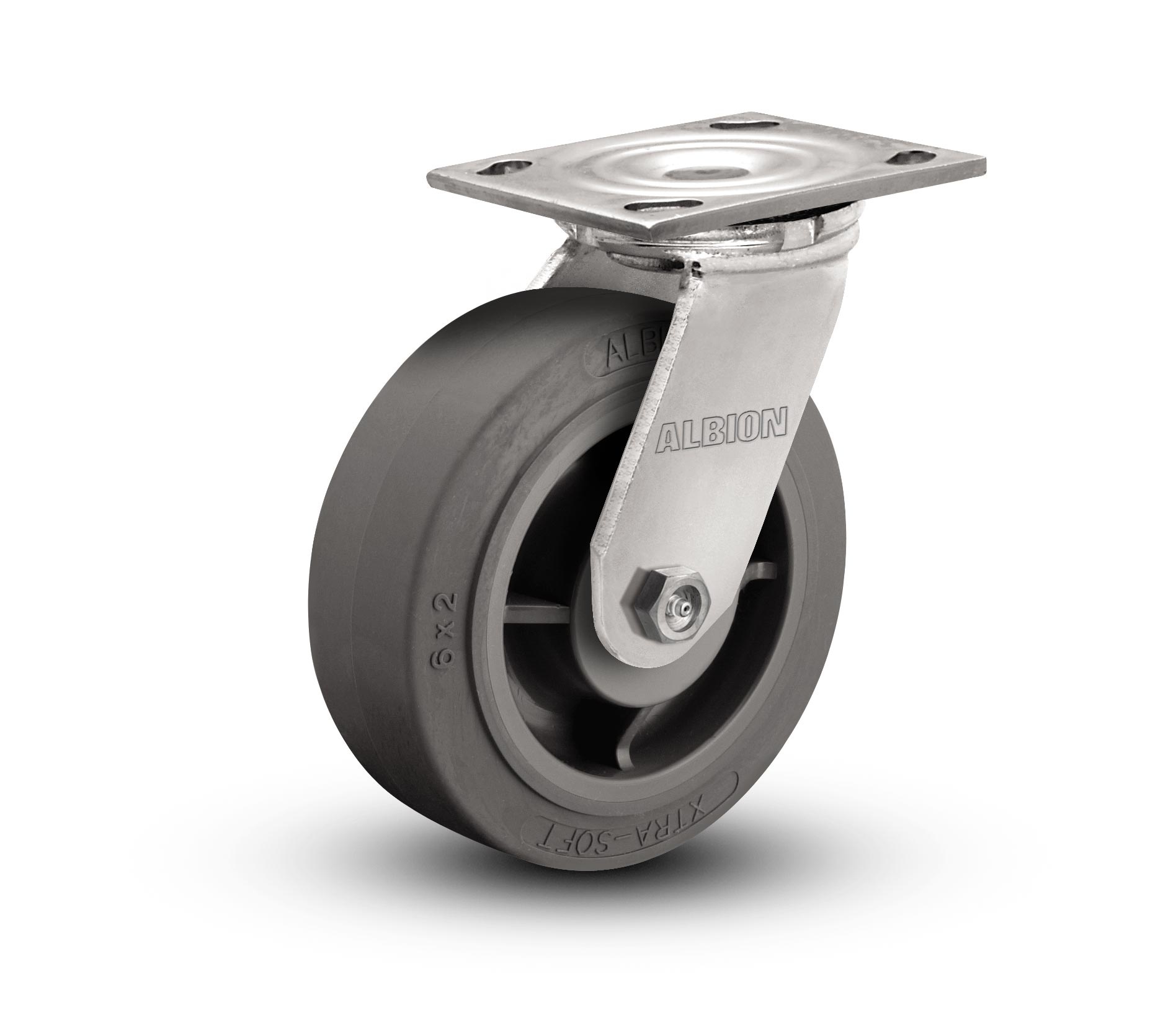

X-tra Soft Flat Tread on Polypropylene

Standard Bearing: Roller (01).

Optional bearings: Precision Ball (28) and Delrin (51); change 01 above to optional bearing code.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	350	5⅝	1¹¹⁄₁₆	5¼
5	2	375	6½	1⅝	5½
6	2	600	7¼	1¾	6
8	2	675	9½	1¾	6½

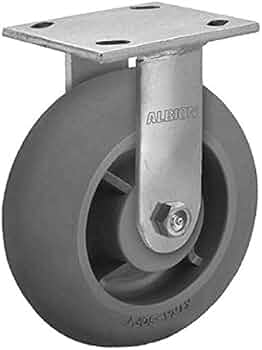

X-tra Soft Round Tread on Polypropylene

Standard Bearing: Roller (01).

Optional bearings: Precision Ball (28) and Delrin (51); change 01 above to optional bearing code.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
6	2	450	7¼	1¾	5½
8	2	600	9½	1¾	6½

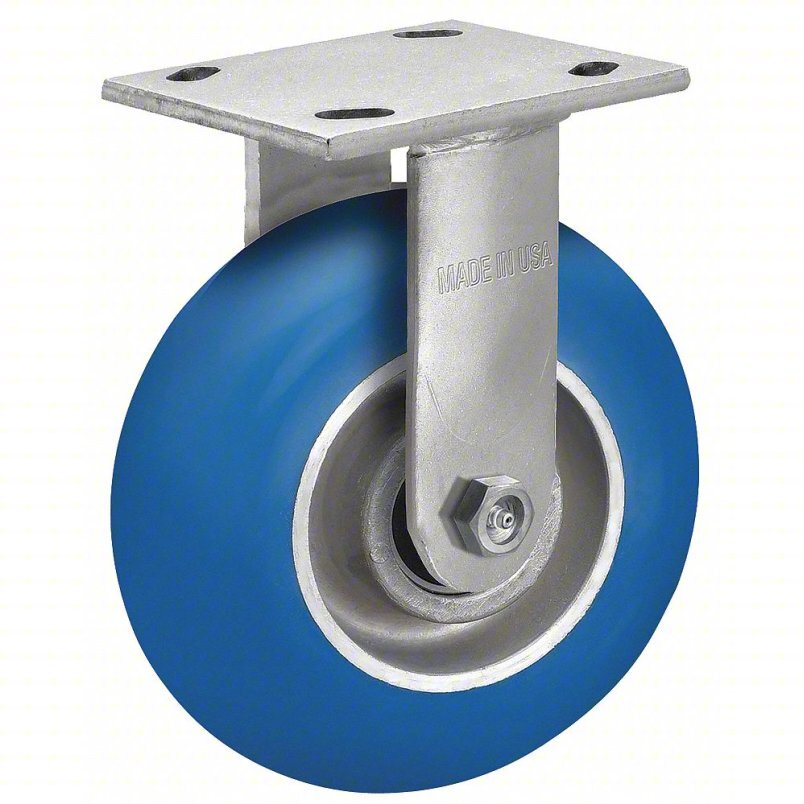

Neoprene Rubber Round Tread on Aluminum

Standard Bearing: Precision Ball (28).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
6	2	700	7¼	1¾
8	2	700	9½	1¾

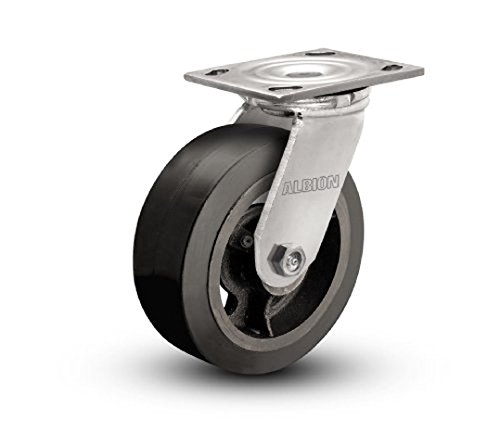

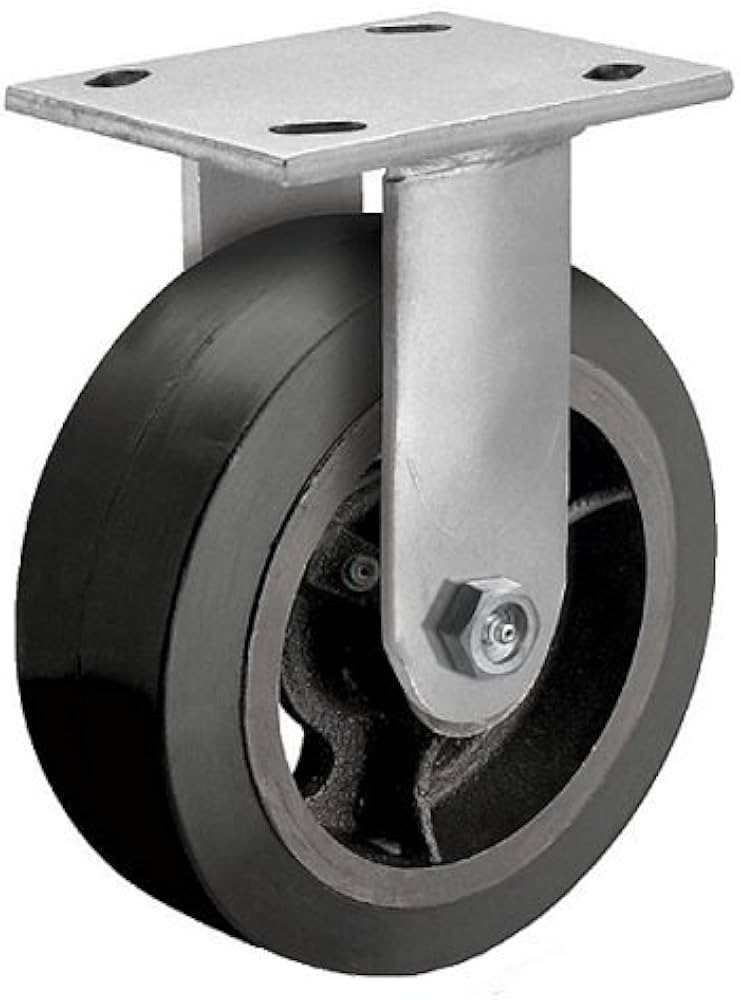

Moldon Rubber on Cast Iron

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	300	5⅝	1¹¹⁄₁₆	5¼
5	2	450	6½	1⅝	5½
6	2	500	7¼	1¾	8
8	2	600	9½	1¾	10¼

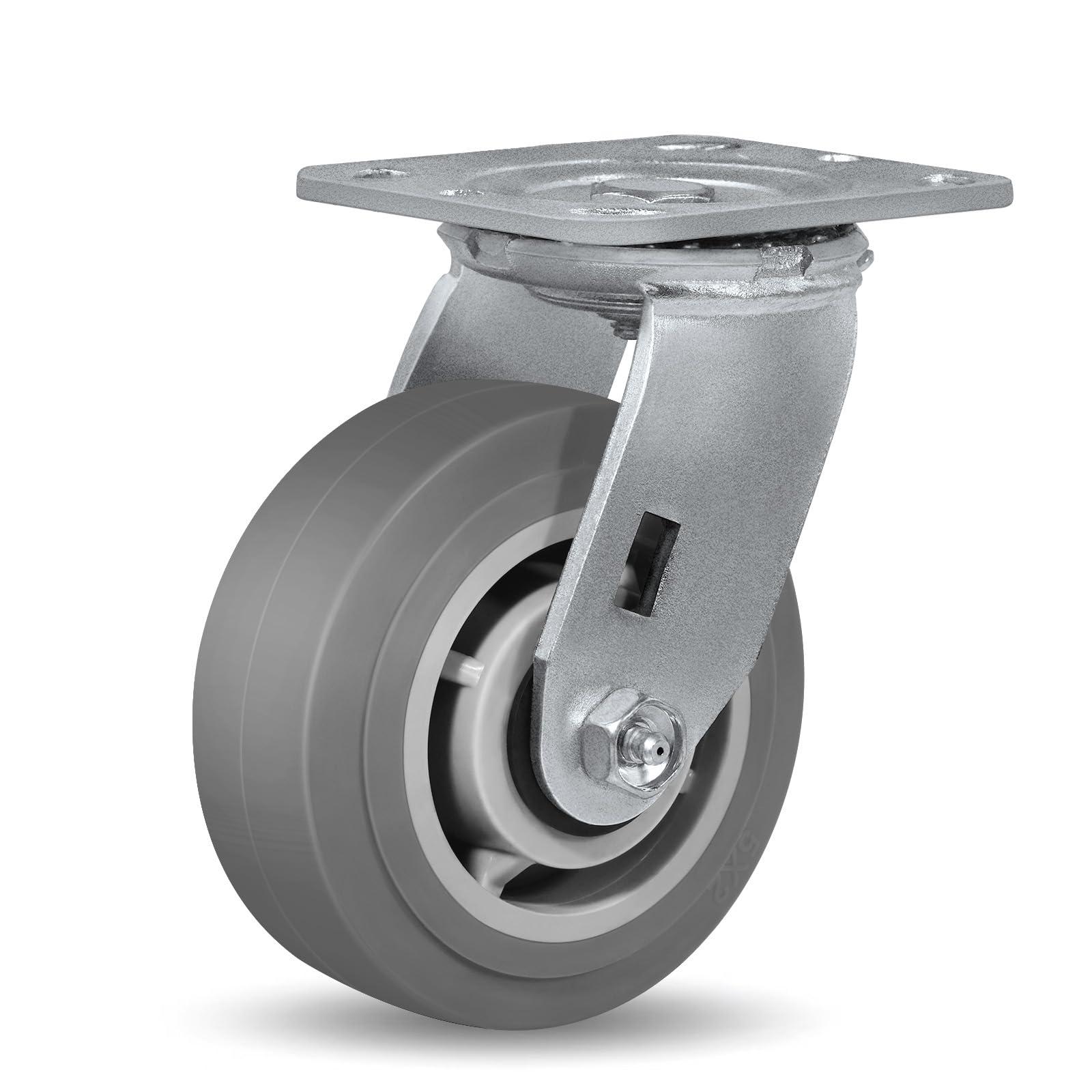

Moldon Rubber on Aluminum

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
6	2	550	7¼	1¾	6
8	2	600	9½	1¾	6½

PNEUMATIC STYLE MODELS

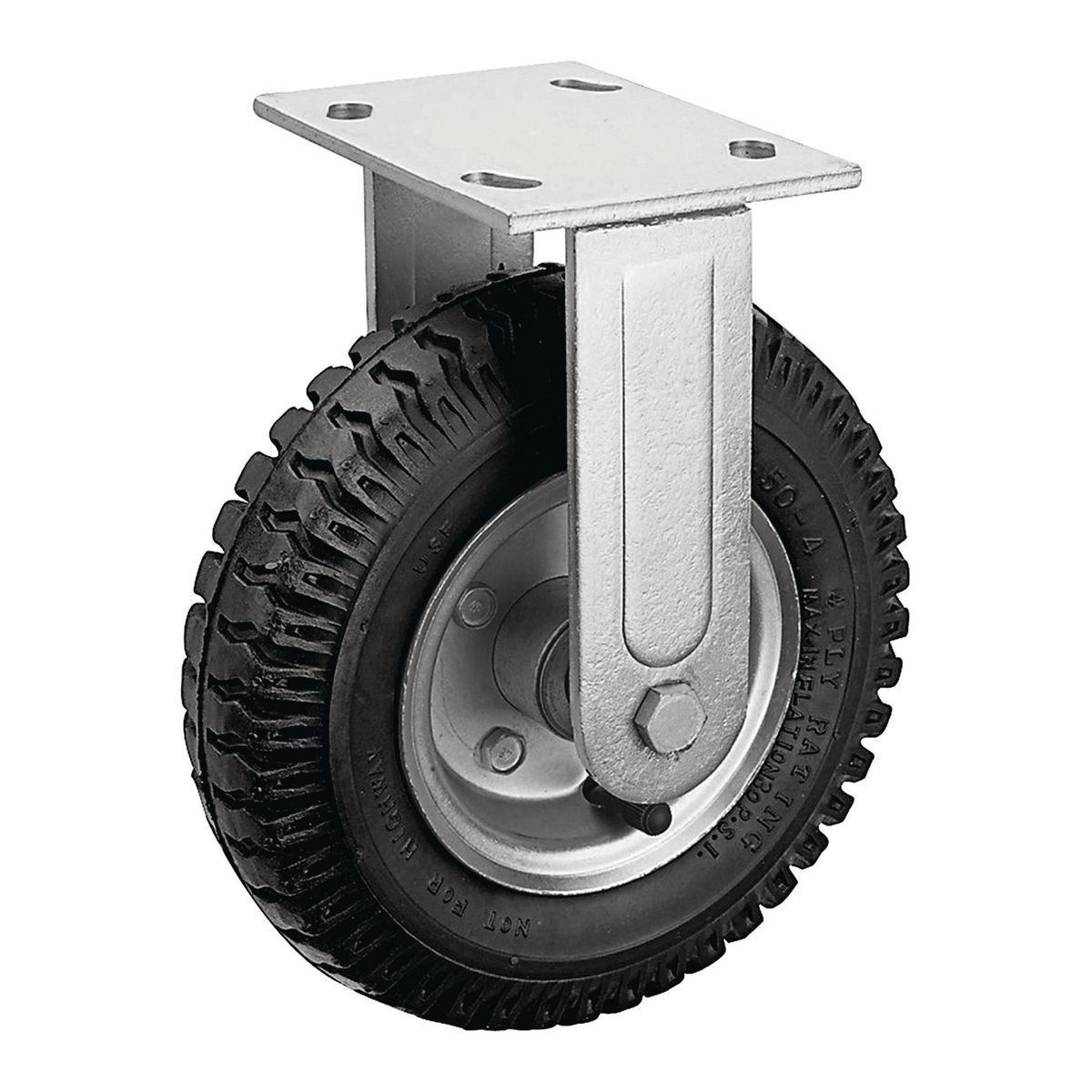

Monoprene Semi-Pneumatic

Standard Bearing: Precision Ball (28).

For grey tread specify "SV" wheel code (example 16SV05228S).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
6	2	250	7¼	1¾	5½
8	2	280	9½	1¾	6½

PHENOLIC MODELS

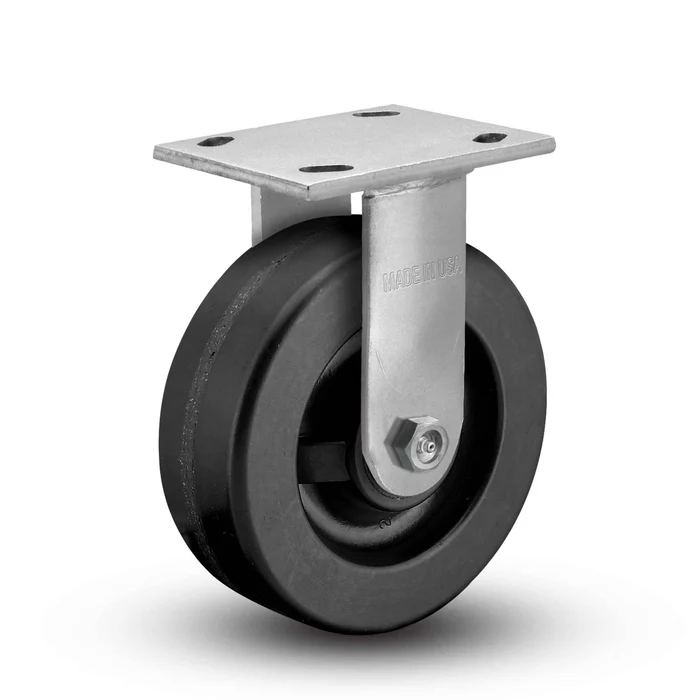

Phenolic

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
3¼	2	700	4¼	1¾	4½
4	2	800	5⅝	1¹¹⁄₁₆	5
5	2	1000	6½	1⅝	5¼
6	2	1200	7¼	1¾	6¼
8	2	1250	9½	1¾	8

POLYPROPYLENE MODELS

High Temp Polypropylene

Standard Bearing: Plain Bore (41).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	500	5⅝	1¹¹⁄₁₆	5
5	2	650	6½	1⅝	5½
6	2	700	7¼	1¾	6
8	2	900	9½	1¾	6½

White Polypropylene

Standard Bearing: Plain Bore (41).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	450	5⅝	1¹¹⁄₁₆	4½
5	2	550	6½	1⅝	5
6	2	650	7¼	1¾	6

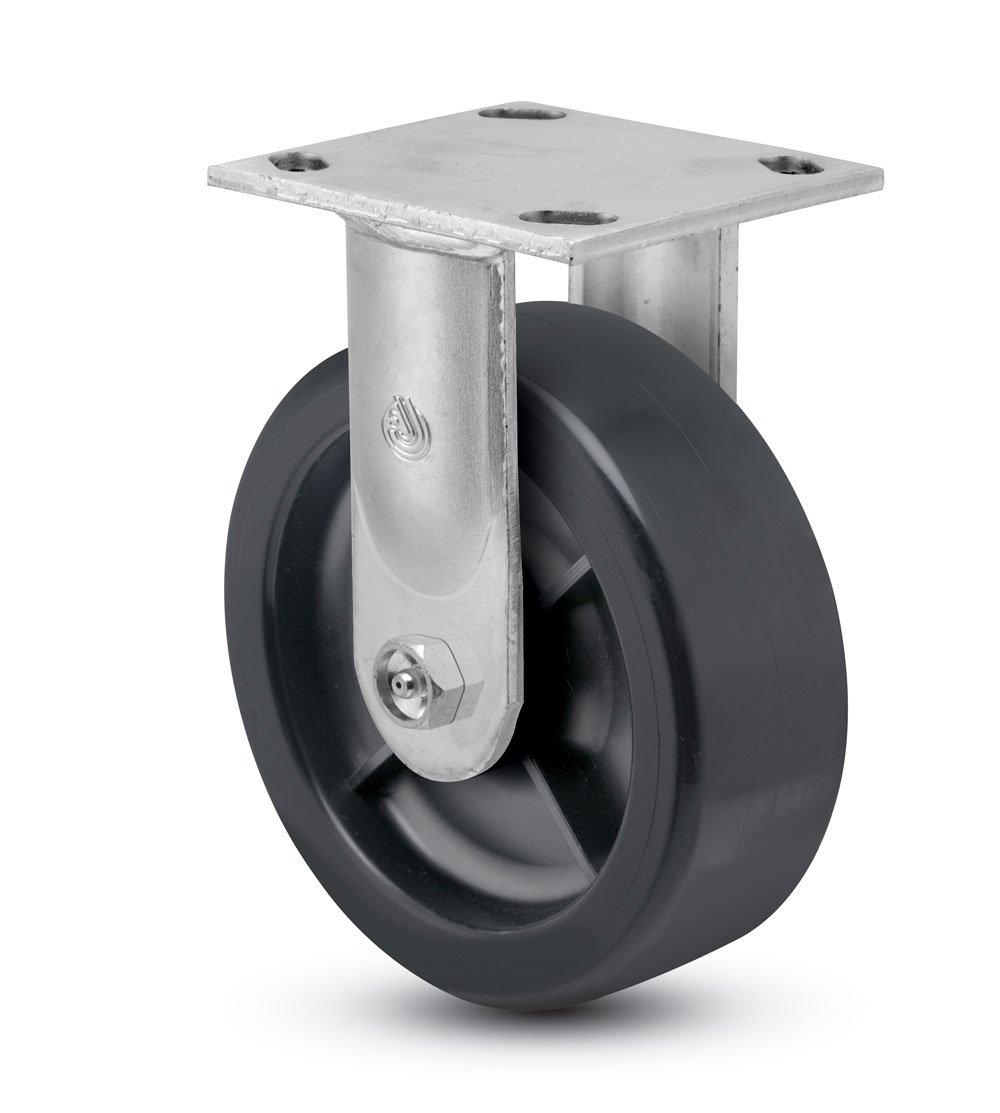

Polypropylene

Standard Bearing: Roller (01).

Optional bearings: Delrin (51) Bearings or plain bore (41); change 01 above to optional bearing code.

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)	Approx. Wt. (LBS)
4	2	450	5⅝	1¹¹⁄₁₆	4½
5	2	550	6½	1⅝	5
6	2	750	7¼	1¾	6
8	2	850	9½	1¾	5½

Glass Filled Polypropylene

Standard Bearing: Roller (01).

Wheel Diameter (Inches)	Tread Width (Inches)	Capacity (Lbs)	Overall Height (Inches)	Swivel Lead (Inches)
4	2	800	5⅝	1¹¹⁄₁₆
5	2	1000	6½	1⅝
6	2	1200	7¼	1¾
8	2	1250	9½	1¾

Drive lasting results with

PREMIUM EFFICIENCY WHEELS

Orange
Wheels

Detail

Maroon
Wheels

Detail

Wheel
Detail

•Our most advanced polyurethane wheel
•ANSI:ICWM tested to outlast and outperform the competition
•Best-in-class ergonomics increase user safety and reduce fatigue
•Patent pending self-retaining top hats reduce environmental and assembly waste
•Debris resistant

Wheel Selection Hints

Polyurethane

• Excellent multi-purpose wheels
• Non-marking, floor protective
• Excellent capacity, wear resistance, and strength
• Various durometers, thicknesses

Nylon

• High load capacities
• Impact resistant
• Corrosion resistant
• High-temp options

Metal

• High load capacities
• Handles the most abuse
• Impact resistant
• Resistant to hot and cold temperatures

Rubber Pneumatic Wheels XS XR NP MR MD SZ

Rubber/
Pneumatic Style

• Floor protection
• Quiet mobility
• Cost effective
• Shock absorption

Phenolic

• High load capacities
• Impact resistant
• Economical
• High-temp options

Polypropylene

• Most economical
• Lightweight
• High-temp options
